Kimal fluid management manifold is a specialized medical valve system used in cardiology to manage the flow of contrast, saline and waste.
Designed in collaboration with cardiologists to solve the most common challenges in radial hemostasis.
Engineered from high-clarity polycarbonate to allow instant, effortless detection of air bubbles, significantly reducing the risk of air emboli.
Built to withstand the rigorous pressure demands of contrast injections , ensuring leak-free performance during complex angioplasties and angiographies.
Equipped with secure, rotating Luer-lock adapters that prevent line kinks, reduce tubing tangles, and maintain a completely closed system.
Our medical-grade fluid management manifolds serve as the dependable command center for your fluid lines, offering interventionalists effortless control over contrast media, saline flushes, and real-time hemodynamic monitoring.
Manifolds can be supplied in various configurations, 2 or 3 port, on its own or as part of a kit including fluid, contrast and a manometer pressure line.
Speak to our team for more information, product details or support with your enquiry.
There is no information to display.
| Product Code (Sterile) | Product Code (Non Sterile) | Kit Contents |
|---|---|---|

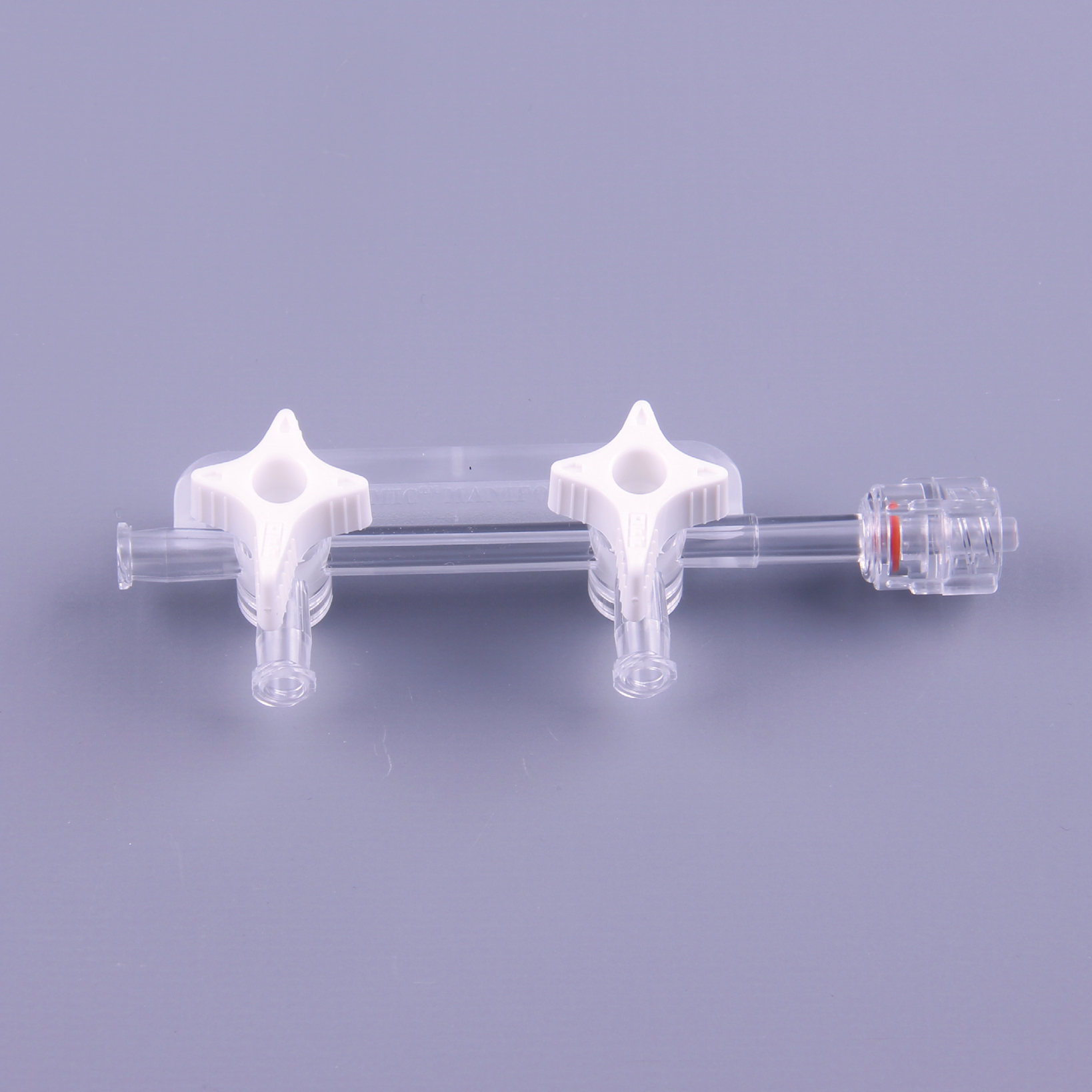

| H965700382001 | 84038200/DE | Navilyst 2 Port Right OFF (Normal-Medium Pressure). Ports: 2. Handles: 2 (easy turn). Handle Configuration: Right OFF. Pressure: 1379kPa (200 psi/14 bar) Static Pressure |

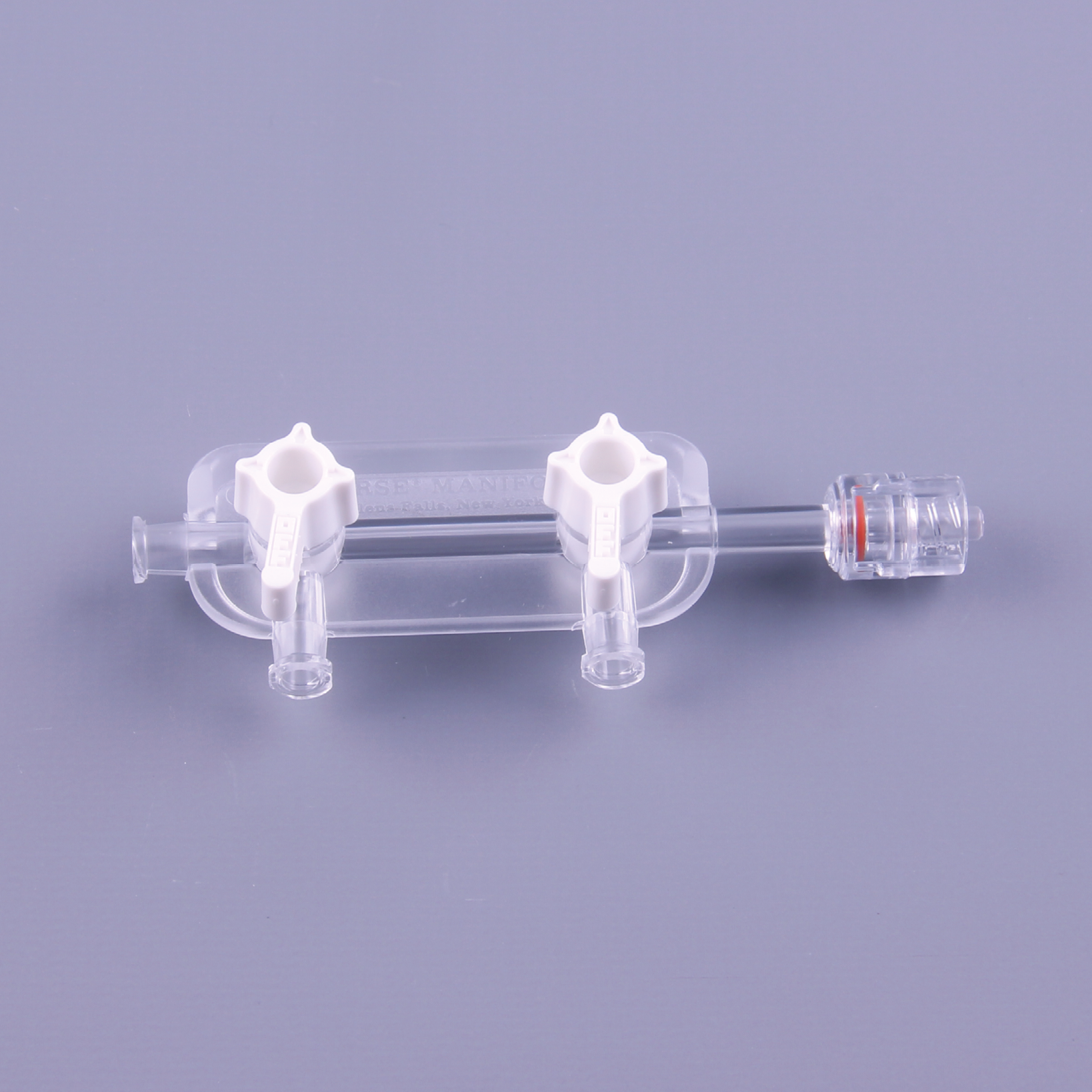

| H965700372001 | 0037200/DE | Navilyst 2 Port Right OFF. Ports: 2. Handles: 2 (stiff turn). Handle Configuration: Right OFF. Pressure: 3447kPa (500 psi/35 bar) Static Pressure. (High Pressure) |
| H965640383011 | 10009/NAM | Navilyst 3 Port Right OFF (Normal-Medium Pressure). Ports: 3 Handles: 3 (easy turn) Handle Configuration: Right OFF Pressure: 1379kPa (200psi/14 bar) Static Pressure. |

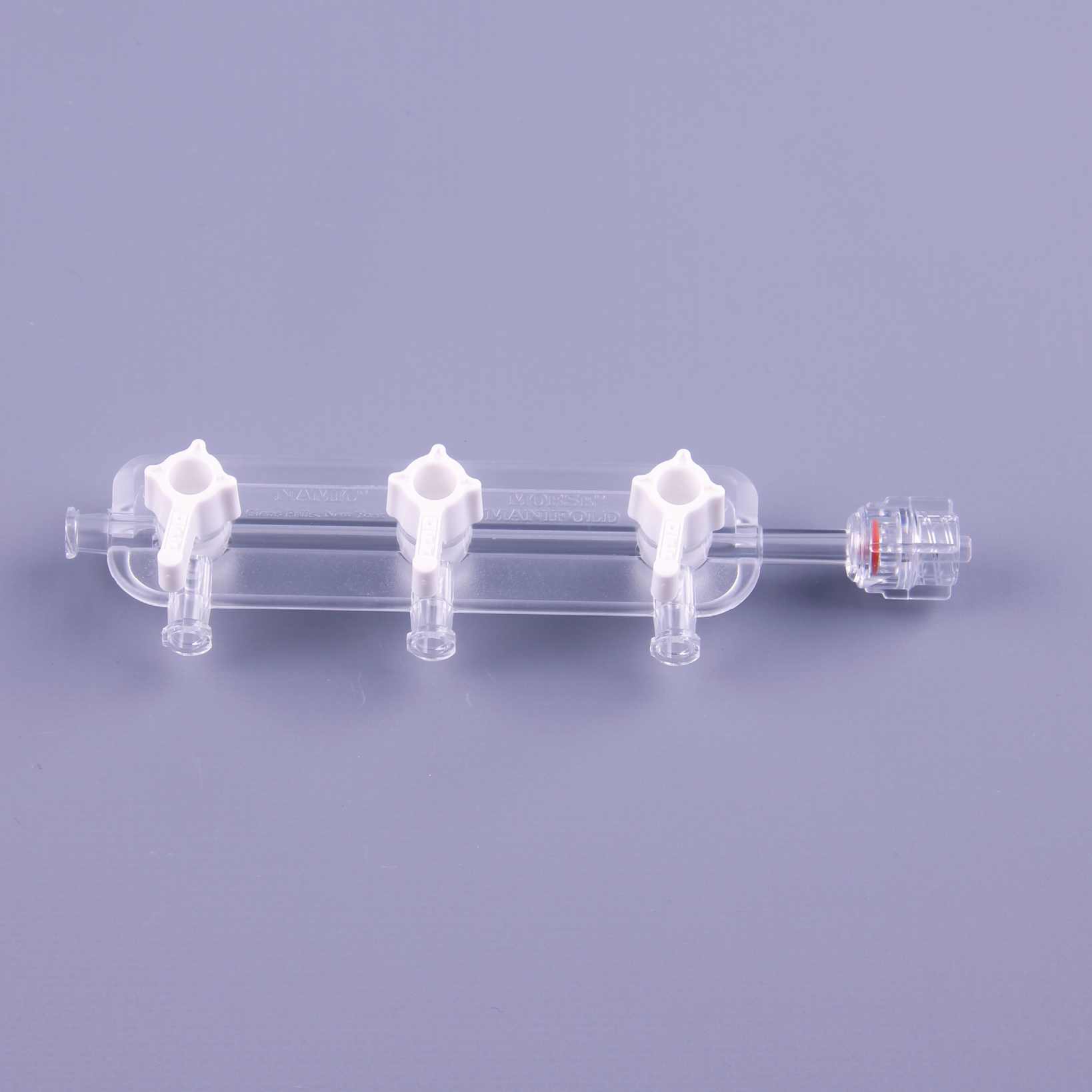

| H965700373011 | 80037301/DE | Navilyst 3 Port Right OFF (High Pressure). Ports: 3 Handles: 3 (stiff turn) Handle Configuration: Right OFF Pressure: 3447kPa (500 psi/35 bar) Static Pressure. |
Kimal AngioGate® Introducer Needles are available in a wide range of configurations and sizes ensuring that you have a needle specific to your requirements.
The NAMICsup>® Protection Station® Plus provides a completely closed fluid system that automates the separation of clean saline flush and hazardous waste fluid, giving you ultimate protection without a second thought.
Kimal surgical drapes and gowns are designed to support safe, efficient, and consistent procedural environments across operating theatres, interventional suites, and clinical settings.
Surgical drapes create controlled sterile barriers between the procedural site and non-sterile areas, supporting infection prevention strategies and helping reduce contamination risks.
Combining high-performance barrier protection with practical procedural design, SurgiGuard® drape solutions help clinicians maintain sterility, improve workflow efficiency, and focus on delivering the highest standards of patient care.
